3M
| Part Number | 966206-2000-AR-PR | Manufacturer | 3M |
|---|---|---|---|

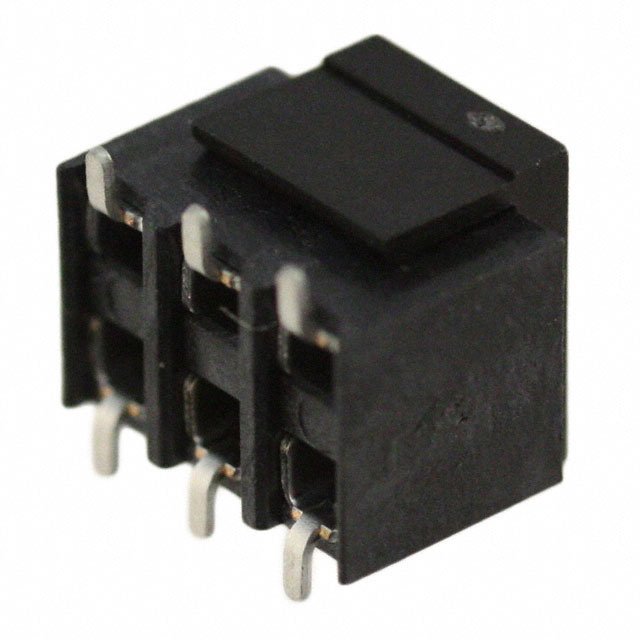

| Description | CONN SOCKET LO-PRO 6PS GOLD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46940 pcs | Data sheet | 966206-2000-AR-PR.pdf |
| Voltage Rating | 1000VDC | Termination | Solder |
| Style | Board to Board | Series | 966 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Cut Tape (CT) | Other Names | 3M9573CT |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.197" (5.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
