3M
| Part Number | 961135-6404-AR | Manufacturer | 3M |
|---|---|---|---|

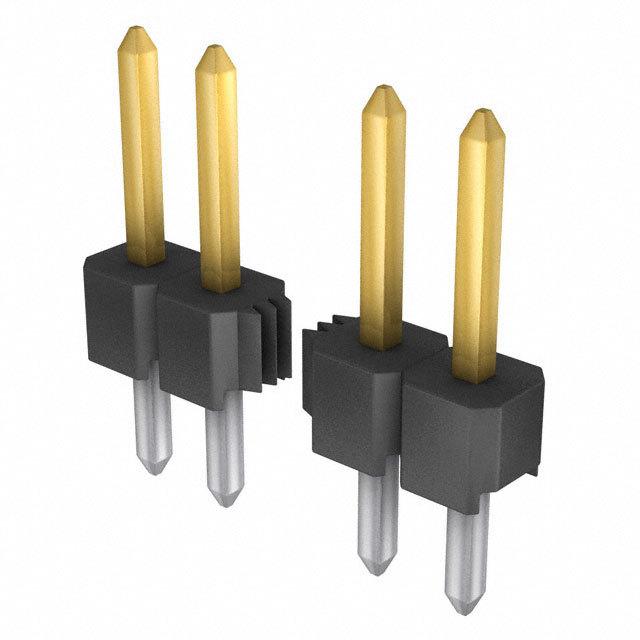

| Description | CONN HEADER VERT SGL 35POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 38397 pcs | Data sheet | 961135-6404-AR.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 961 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.445" (11.30mm) | Other Names | 3M9457-35 961135-6404-AR-ND DE500042085 ZZ150353684 |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 35 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 35 position 0.100" (2.54mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.217" (5.50mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
