3M

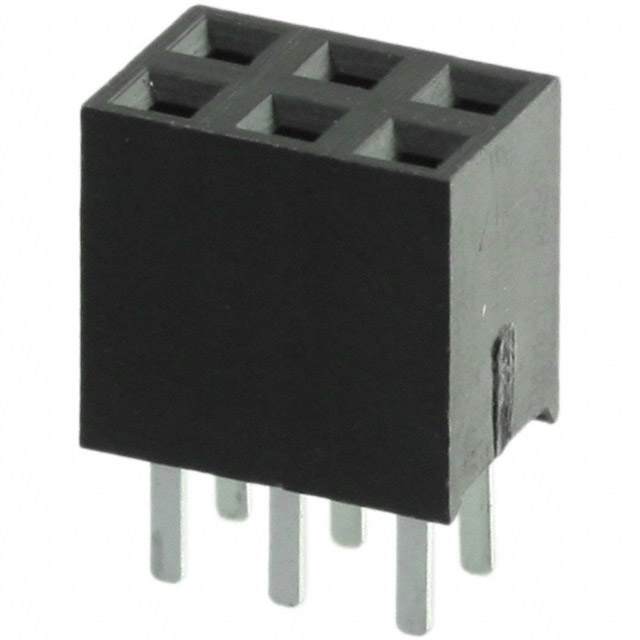

| Part Number | 960206-6202-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET DUAL VERT 6POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66817 pcs | Data sheet | 960206-6202-AR.pdf |
| Voltage Rating | 1000VDC | Termination | Solder |
| Style | Board to Board | Series | 960 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 3M9525 4046719183548 4671918354 9602066202AR DE500056291 |
| Operating Temperature | -25°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.280" (7.10mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
