3M

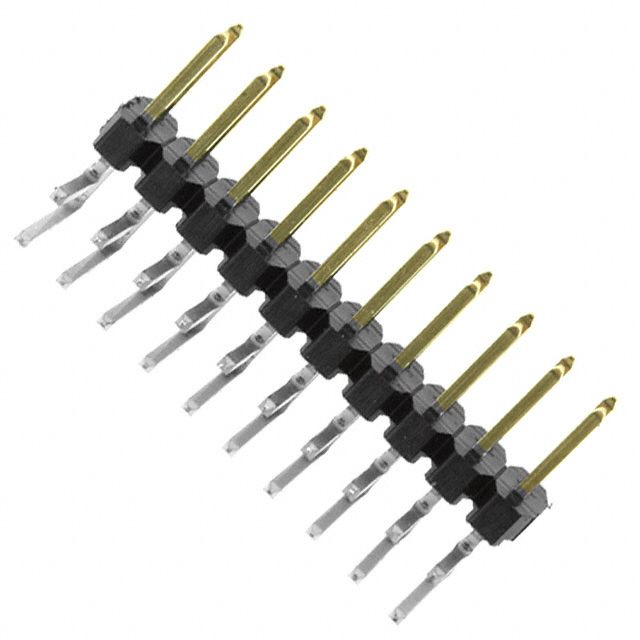

| Part Number | 951220-7622-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 20POS 2MM R/A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 62018 pcs | Data sheet | 1.951220-7622-AR.pdf2.951220-7622-AR.pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Type Attributes | - |
| Termination | Solder | Style | Board to Board |
| Stacking Direction | Male Pin | Shrouding | 0.079" (2.00mm) |
| Shield Termination | Square | Series | 951 |
| Row Spacing - Mating | Unshrouded | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.110" (2.79mm) | Other Names | 3M9162 4046719181582 4671918158 9512207622AR DE500001487 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 20 | Number of Contacts | 39µin (1.00µm) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 9 Weeks | Manufacturer Part Number | 951220-7622-AR |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | - |
| Expanded Description | 20 Positions Header Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Description | CONN HEADER 20POS 2MM R/A T/H |
| Current Rating | 1A | Current - Max/Contact | - |
| Contact Length - Post | 0.173" (4.40mm) | Contact Length - Mating | 0.079" (2.00mm) |
| Contact Finish Thickness - Post | Thermoplastic | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | Flash | Contact Finish - Mating | 0.157" (4.00mm) |
| Connector Type | Header | Actual Diameter | Black |
