3M
| Part Number | 950540-6102-AR | Manufacturer | 3M |
|---|---|---|---|

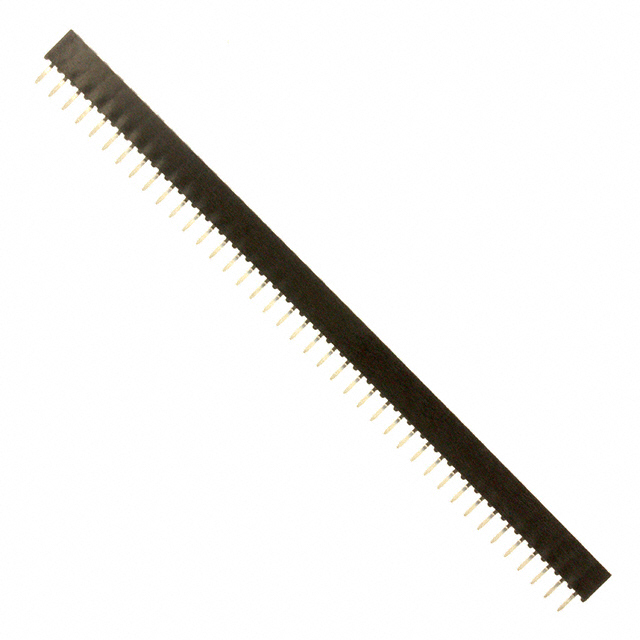

| Description | CONN SOCKET 40POS 2MM VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15457 pcs | Data sheet | 950540-6102-AR.pdf |
| Voltage Rating | 1000V | Termination | Solder |
| Style | Board to Board | Series | 950 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 3M9413 5111106166 51111061664 9505406102AR DE500027771 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.169" (4.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 40 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.098" (2.50mm) | Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
