3M
| Part Number | 950408-5002-AR | Manufacturer | 3M |
|---|---|---|---|

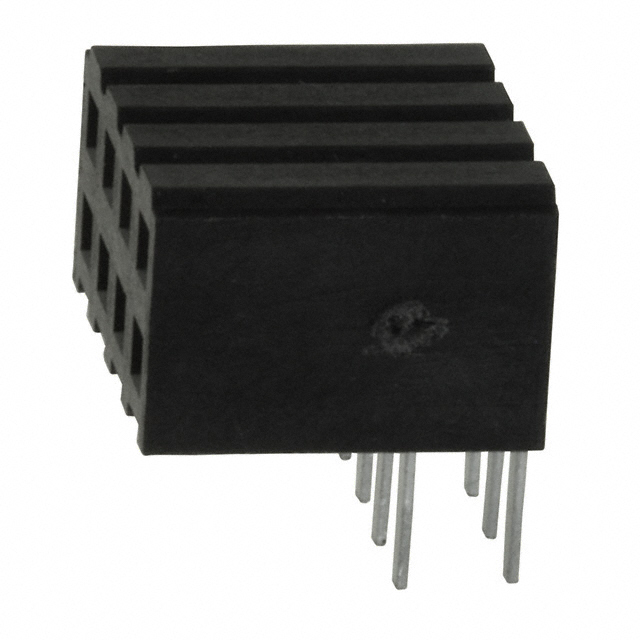

| Description | CONN SOCKET 8POS RT/A 2MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33717 pcs | Data sheet | 950408-5002-AR.pdf |
| Voltage Rating | 1000VDC | Termination | Solder |
| Style | Board to Board | Series | 950 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | 3M9250 4046719182473 4671918247 70-2003-0283-7 7010315410 70200302837 9504085002AR DE500027805 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.191" (4.85mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
