3M

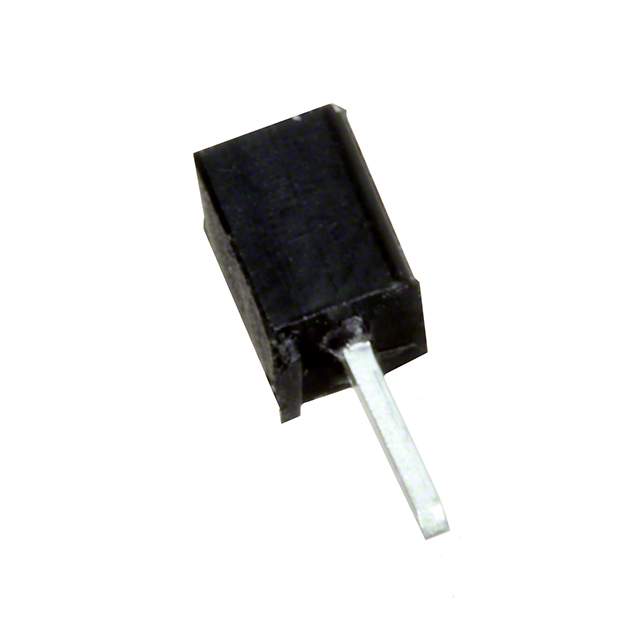

| Part Number | 929870-01-01-RA | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RCPT 1POS STR .100" GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 213200 pcs | Data sheet | 929870-01-01-RA.pdf |
| Voltage Rating | 1000V | Termination | Solder |
| Style | Board to Board | Series | 929 |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Bulk | Other Names | 05111166534 3M157229 7010347667 80000909202 929870-01-01-RA-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.150" (3.81mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 1 Position Receptacle Connector Through Hole Gold | Current Rating | 1A |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
