3M
| Part Number | 929852-01-13-RA | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN RECEPT .100 DUAL STR 26POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26428 pcs | Data sheet | 929852-01-13-RA.pdf |
| Voltage Rating | 1500V | Termination | Solder |
| Style | Board to Board | Series | 929 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 5111166517 51111665176 80000909038 9298520113RA 929852E-01-13 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 26 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled | Insulation Height | 0.325" (8.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |

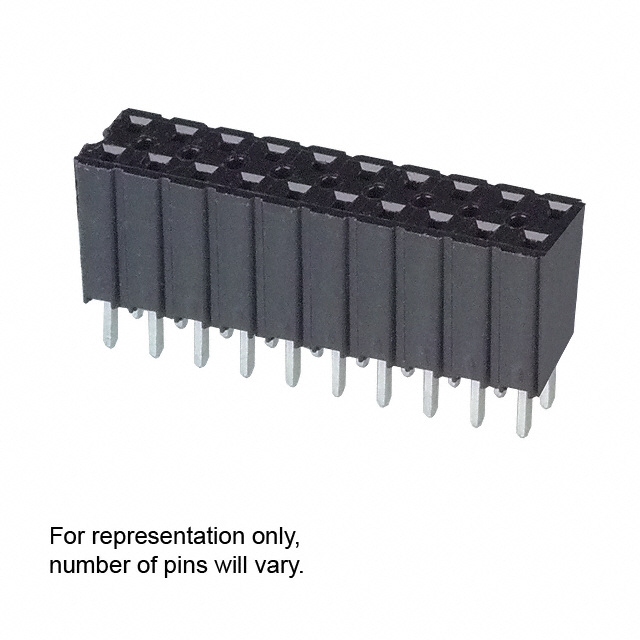

| Detailed Description | 26 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 2A |
| Contact Type | Forked | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
