929836-08-36-RK

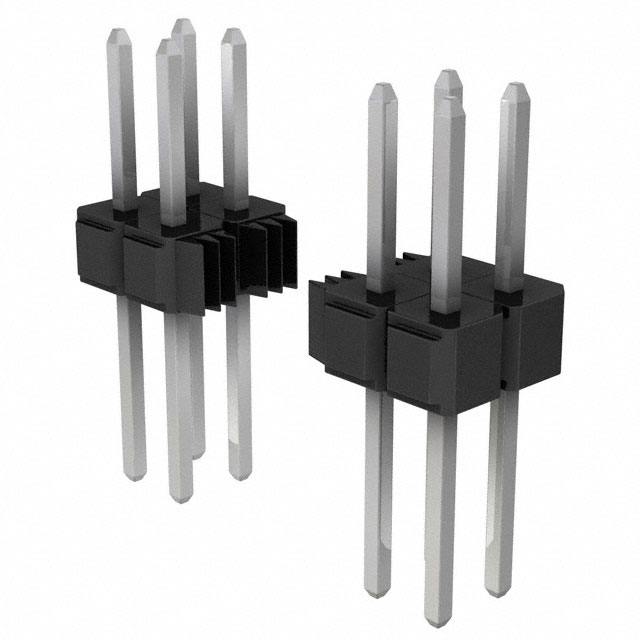

Image may be representation. See specifications for product details.

Product Overview

Part Number:	929836-08-36-RK
Manufacturer/Brand:	3M
Product description	CONN HEADER .100 DUAL STR 72POS
Datasheets:	1.929836-08-36-RK.pdf 2.929836-08-36-RK.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27630 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 27630 pcs

Reference Price (In US Dollars)

1 pcs: $1.30

10 pcs: $1.248

100 pcs: $1.04

500 pcs: $0.884

1000 pcs: $0.754

5000 pcs: $0.676

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.30

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 929836-08-36-RK

Part Number	929836-08-36-RK	Manufacturer	3M
Description	CONN HEADER .100 DUAL STR 72POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27630 pcs	Data sheet	1.929836-08-36-RK.pdf 2.929836-08-36-RK.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	929	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.645" (16.38mm)	Other Names	3M156506-72 5111166460 51111664605 7010347650 80000908469 9298360836RK 929836E-08-36 929836E-08-36-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	72
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 72 position 0.100" (2.54mm)	Current Rating	2.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.310" (7.87mm)
Contact Length - Mating	0.235" (5.97mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	200.0µin (5.08µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
