3M
| Part Number | 929715-10-05-I | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL STR 10POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29671 pcs | Data sheet | 1.929715-10-05-I.pdf2.929715-10-05-I.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 929 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.593" (15.07mm) | Other Names | 3M156379-10 929715-10-05 929715-10-05-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |

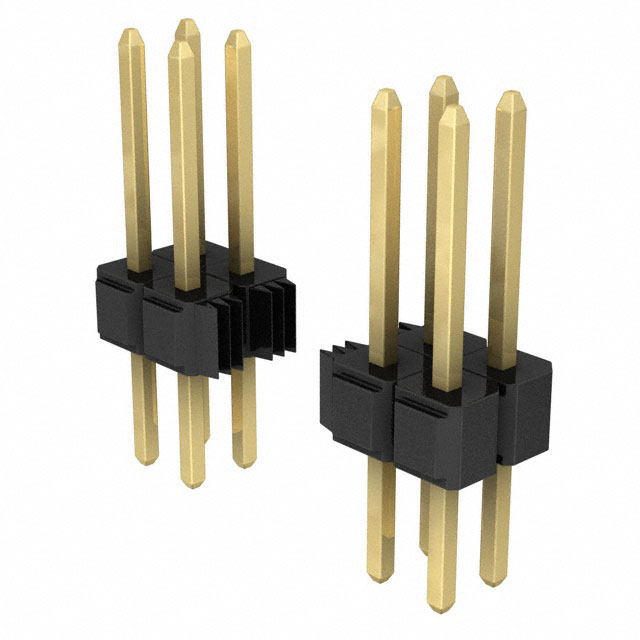

| Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) | Current Rating | 2.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.175" (4.45mm) |
| Contact Length - Mating | 0.318" (8.08mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
