929705-09-32-EU

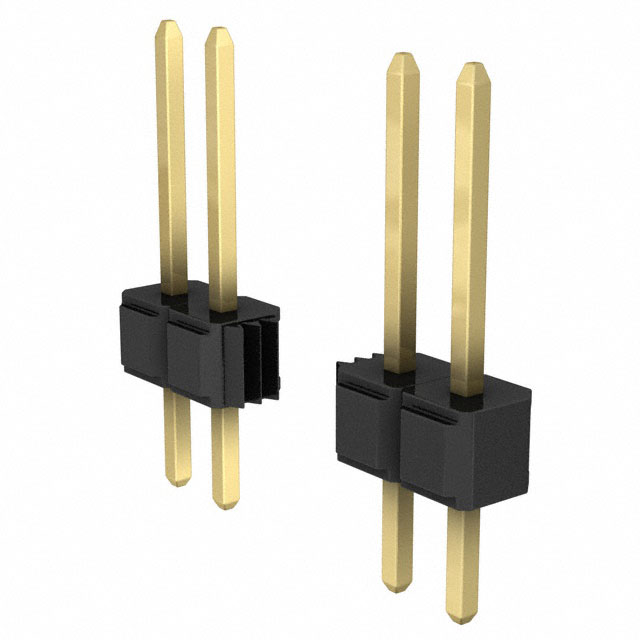

Image may be representation. See specifications for product details.

Product Overview

Part Number:	929705-09-32-EU
Manufacturer/Brand:	3M
Product description	CONN HEADER 32POS STR .100" GOLD
Datasheets:	1.929705-09-32-EU.pdf 2.929705-09-32-EU.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23535 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23535 pcs

Reference Price (In US Dollars)

1 pcs: $1.449

10 pcs: $1.296

100 pcs: $1.068

500 pcs: $0.844

1000 pcs: $0.724

5000 pcs: $0.661

10000 pcs: $0.636

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.449

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 929705-09-32-EU

Part Number	929705-09-32-EU	Manufacturer	3M
Description	CONN HEADER 32POS STR .100" GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23535 pcs	Data sheet	1.929705-09-32-EU.pdf 2.929705-09-32-EU.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	929	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.563" (14.30mm)	Other Names	00076308055820 07630805582 3M156857-32 7630805582 76308055820 80001335118 929705-09-32-EU-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	32
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Insulation Height	0.100" (2.54mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 32 position 0.100" (2.54mm)
Current Rating	2.5A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Copper Alloy
Contact Length - Post	0.145" (3.68mm)	Contact Length - Mating	0.318" (8.08mm)
Contact Finish Thickness - Post	10.0µin (0.25µm)	Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	-
