929647-08-36-EU

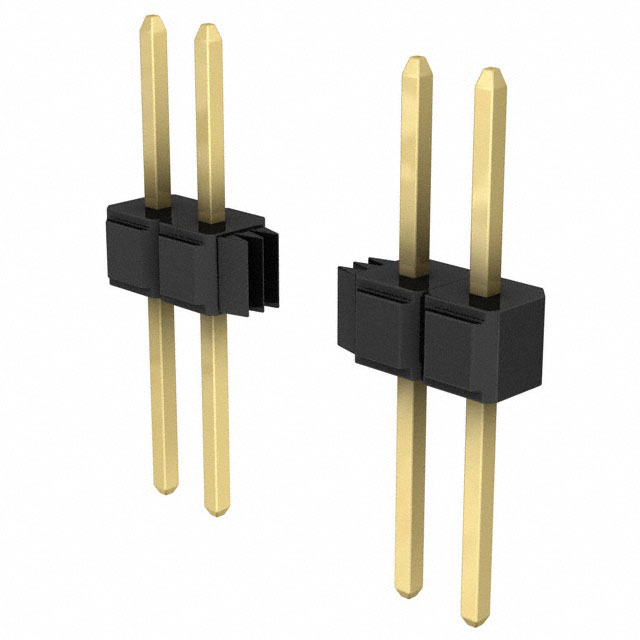

Image may be representation. See specifications for product details.

Product Overview

Part Number:	929647-08-36-EU
Manufacturer/Brand:	3M
Product description	CONN HEADER 36POS STR .100" GOLD
Datasheets:	1.929647-08-36-EU.pdf 2.929647-08-36-EU.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14379 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14379 pcs

Reference Price (In US Dollars)

1 pcs: $2.471

10 pcs: $2.366

100 pcs: $1.955

500 pcs: $1.646

1000 pcs: $1.44

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.471

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 929647-08-36-EU

Part Number	929647-08-36-EU	Manufacturer	3M
Description	CONN HEADER 36POS STR .100" GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14379 pcs	Data sheet	1.929647-08-36-EU.pdf 2.929647-08-36-EU.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Unshrouded
Series	929	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	05111166383 3M156535-36 7010347634 80000907693 929647-08-36-EU-ND
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	36
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)	Insulation Height	0.100" (2.54mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 36 position 0.100" (2.54mm)	Current Rating	2.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.235" (5.97mm)	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	-
