3M

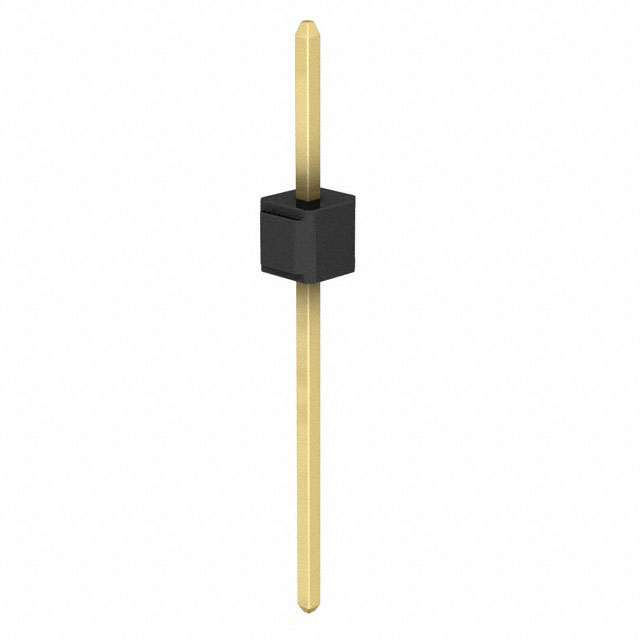

| Part Number | 929647-04-01-I | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .100 SNGL STR 1POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57051 pcs | Data sheet | 1.929647-04-01-I.pdf2.929647-04-01-I.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 929 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | 0.845" (21.46mm) | Other Names | 3M156520-01 929647-04-01 929647-04-01-ND |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 1 position | Current Rating | 2.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.510" (12.95mm) |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header, Breakaway |
| Applications | - |
