3M

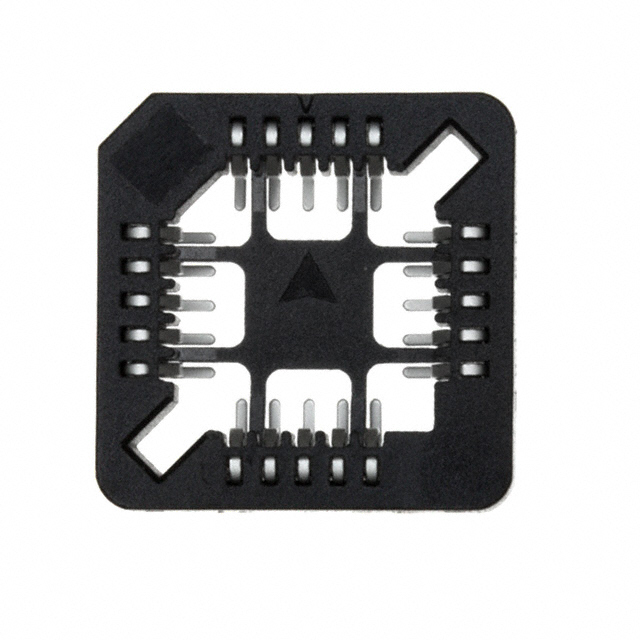

| Part Number | 8420-21B1-RK-TP | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET PLCC 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65301 pcs | Data sheet | 1.8420-21B1-RK-TP.pdf2.8420-21B1-RK-TP.pdf |
| Type | PLCC | Termination Post Length | 0.132" (3.35mm) |
| Termination | Solder | Series | 8400 |
| Pitch - Post | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Other Names | 00051111663127 3M2021B1 5111166312 51111663127 7000057173 80000905309 842021B1RKTP |
| Operating Temperature | -40°C ~ 105°C | Number of Positions or Pins (Grid) | 20 (4 x 5) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | - | Contact Material - Post | Copper Alloy |
| Contact Material - Mating | Copper Alloy | Contact Finish Thickness - Post | 160.0µin (4.06µm) |
| Contact Finish Thickness - Mating | 160.0µin (4.06µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
