3M

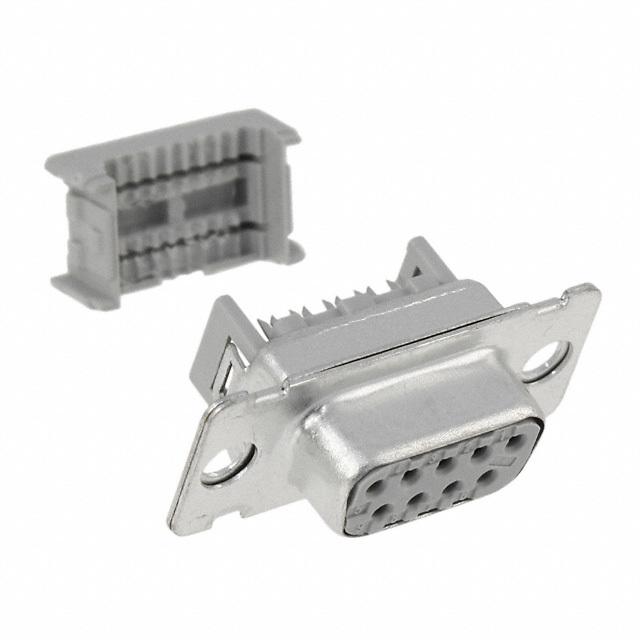

| Part Number | 8309-7000 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN D-SUB RCPT 9POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13454 pcs | Data sheet | 1.8309-7000.pdf2.8309-7000.pdf |
| Wire Gauge | 26-28 AWG | Voltage Rating | - |
| Termination | IDC, Ribbon Cable | Shell Size, Connector Layout | 1 (DE, E) |
| Shell Material, Finish | Steel, Tin Plated | Series | 8300 |
| Packaging | Bulk | Other Names | 05400736808 5400736808 54007368083 7010348475 80610186118 83097000 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 9 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Features | - |
| Detailed Description | 9 Position D-Sub Receptacle, Female Sockets Connector | Current Rating | 1A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Receptacle, Female Sockets |
| Connector Style | D-Sub | Color | Gray |
| Backset Spacing | - |
