3M

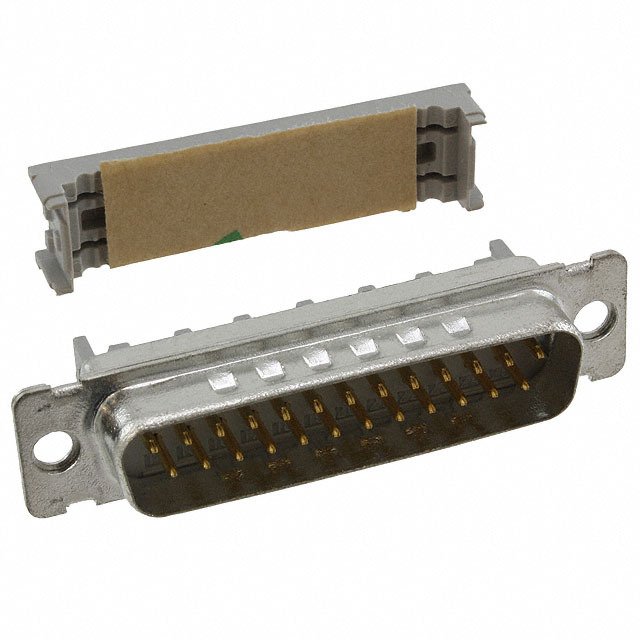

| Part Number | 8225-6000 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN DSUB PLUG 25POS PNL MNT IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11893 pcs | Data sheet | 1.8225-6000.pdf2.8225-6000.pdf |
| Wire Gauge | - | Voltage Rating | - |
| Termination | IDC, Ribbon Cable | Shell Size, Connector Layout | 3 (DB, B) |
| Shell Material, Finish | Steel, Tin Plated | Series | 8200 |
| Packaging | Tray | Other Names | 0-40-54596-12113-3 04054596121133 189587056 4001895870569 5113841061 51138410612 7100087758 82256000 DE-6100-0665-7 DE610006657 DE610012010 MMR25K UU-0048-6973-9 UU004869739 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Features | Feed Through, Grounding Indents |
| Detailed Description | 25 Position D-Sub Plug, Male Pins Connector | Current Rating | 1A |
| Contact Type | Signal | Contact Material | Copper Alloy |
| Contact Form | - | Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | Gray |
| Backset Spacing | - |
