81100-560203-RB

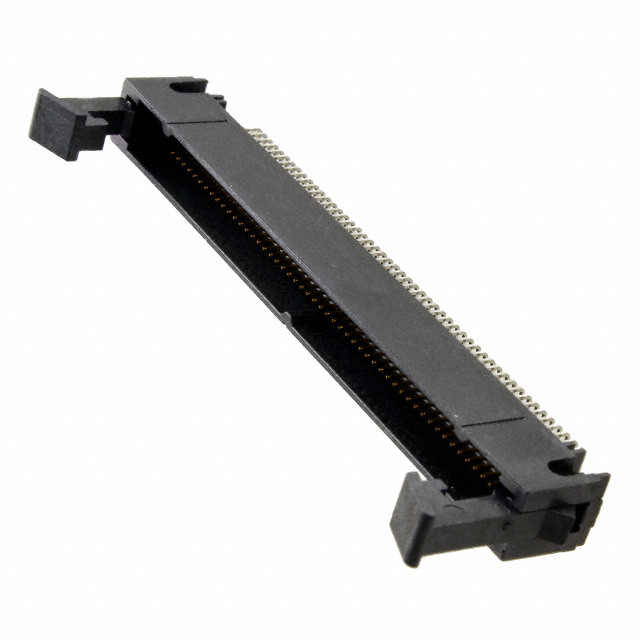

Image may be representation. See specifications for product details.

Product Overview

Part Number:	81100-560203-RB
Manufacturer/Brand:	3M
Product description	CONN HEADER 100POS R/A LONG T/H
Datasheets:	81100-560203-RB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5006 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5006 pcs

Reference Price (In US Dollars)

1 pcs: $7.622

10 pcs: $6.882

100 pcs: $5.975

500 pcs: $5.481

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$7.622

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 81100-560203-RB

Part Number	81100-560203-RB	Manufacturer	3M
Description	CONN HEADER 100POS R/A LONG T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5006 pcs	Data sheet	81100-560203-RB.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	810	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	05111165903 3M15433 5111165903 51111659038 7010396685 80000901993 81100-560203-RB-ND 81100560203RB
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	100
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.310" (7.87mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Lock/Eject Hooks, Long
Detailed Description	Connector Header Through Hole, Right Angle 100 position 0.050" (1.27mm)	Current Rating	0.75A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.090" (2.29mm)
Contact Length - Mating	0.140" (3.56mm)	Contact Finish Thickness - Post	250.0µin (6.35µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
