3M

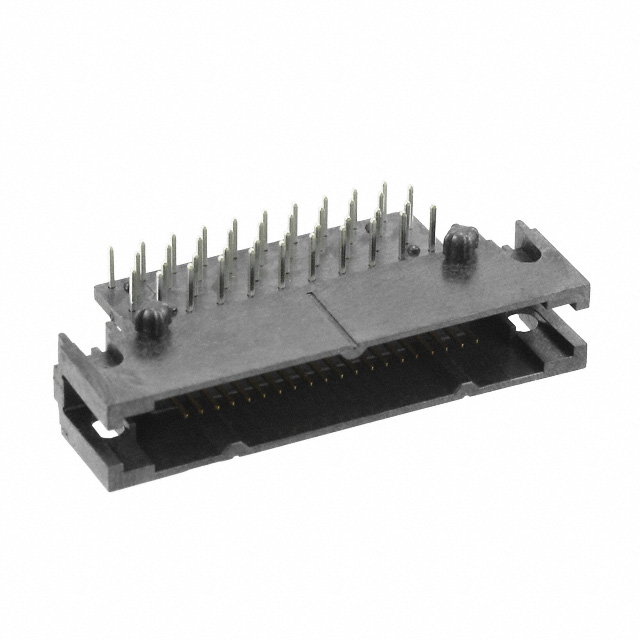

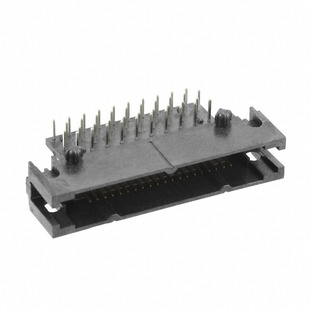

| Part Number | 81040-M00203-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 40POS R/A 4ROW SLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5638 pcs | Data sheet | 81040-M00203-RB.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 810 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 05111165873 80000901696 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | - |
| Number of Positions Loaded | All | Number of Positions | 40 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.310" (7.87mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 40 position 0.050" (1.27mm) |
| Current Rating | 0.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.140" (3.56mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
