3M
| Part Number | 6834-4500PL | Manufacturer | 3M |
|---|---|---|---|
| Description | 34/2R/BM SKT/.100 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 16665 pcs | Data sheet | 1.6834-4500PL.pdf2.6834-4500PL.pdf |
| Voltage Rating | 1000V | Termination | Kinked Pin, Solder |
| Style | Board to Board or Cable | Series | 6800 |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 0-45-47452-51414-4 4547452514144 54745251414 68344500PL 7000090360 JE150344156 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 34 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Insulation Height | 0.283" (7.19mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Polarizing Key | Fastening Type | Push-Pull |

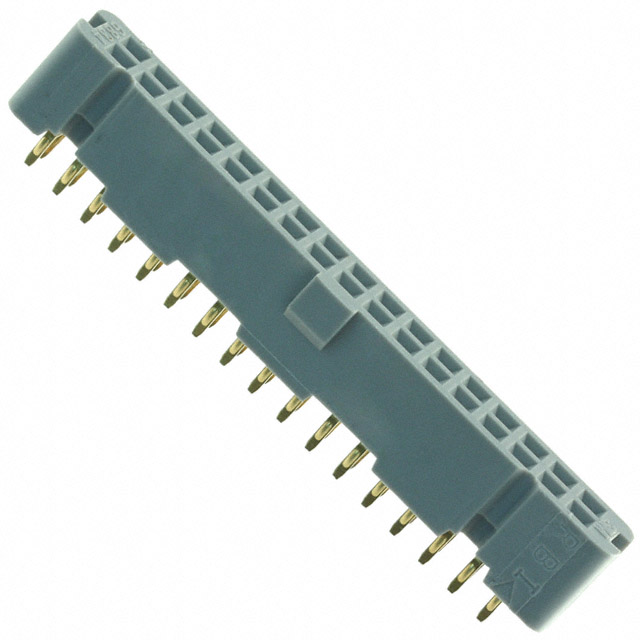

| Detailed Description | 34 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
