3M
| Part Number | 4840-6000-CP | Manufacturer | 3M |
|---|---|---|---|

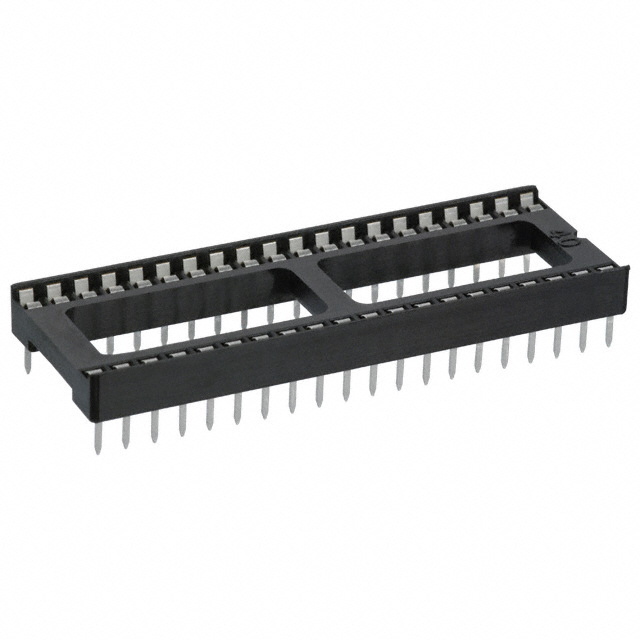

| Description | CONN IC DIP SOCKET 40POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95923 pcs | Data sheet | 4840-6000-CP.pdf |
| Type | DIP, 0.6" (15.24mm) Row Spacing | Termination Post Length | - |
| Termination | Solder | Series | 4800 |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 00051111752470 3M5471 48406000CP 5111175247 51111752470 7010501780 80000913220 |
| Operating Temperature | -25°C ~ 85°C | Number of Positions or Pins (Grid) | 40 (2 x 20) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyester, Glass Filled |
| Features | Open Frame | Current Rating | 1A |
| Contact Resistance | - | Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze | Contact Finish Thickness - Post | 35.0µin (0.90µm) |
| Contact Finish Thickness - Mating | 35.4µin (0.90µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
