3M

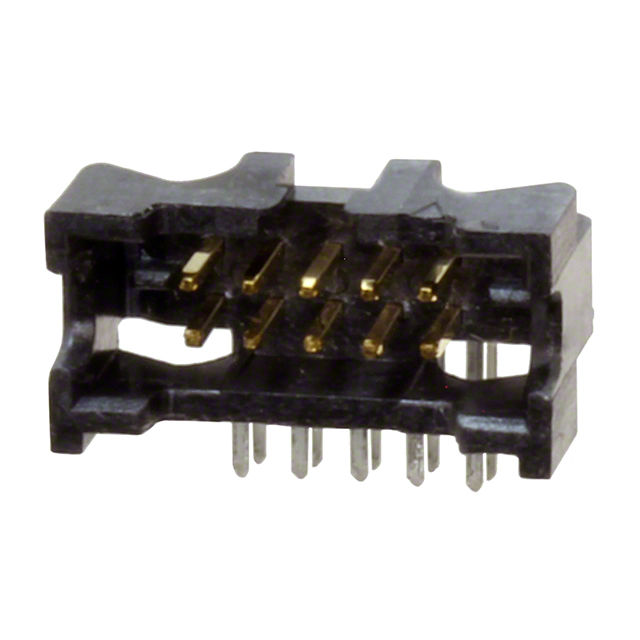

| Part Number | 45210-500200 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER .05" 10POS RA T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36898 pcs | Data sheet | 1.45210-500200.pdf2.45210-500200.pdf3.45210-500200.pdf4.45210-500200.pdf |
| Voltage Rating | 125V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 452 | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 00076308615574 3M156840 45210-500200-ND 7010408054 76308615574 80001405226 |
| Operating Temperature | -65°C ~ 125°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 10 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.210" (5.33mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.050" (1.27mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.094" (2.40mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
