3M

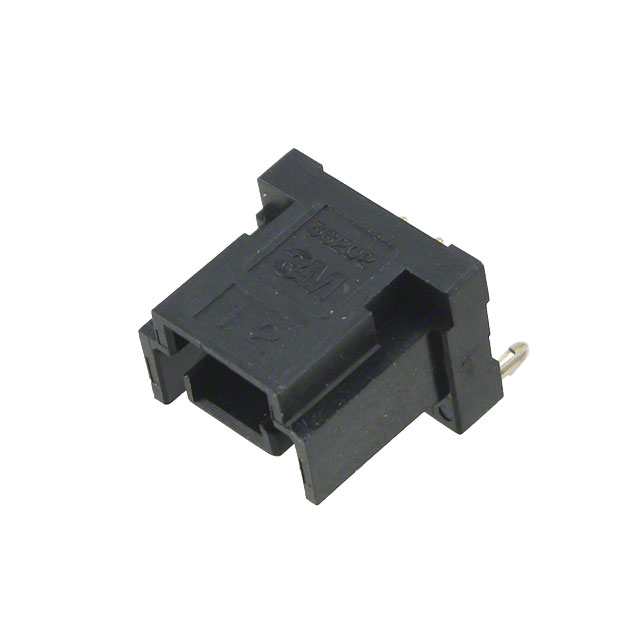

| Part Number | 38202-62S3-000 PL | Manufacturer | 3M |
|---|---|---|---|
| Description | 2POS LINK BOARD MOUNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19397 pcs | Data sheet | 38202-62S3-000 PL.pdf |
| Voltage Rating | 160V | Termination | Solder |
| Style | Board to Cable/Wire | Series | 382 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 3820262S3000PL 3M10681 5 45 48623 56274 7 5 48623 5627 4 7010354041 JE150419818 |
| Operating Temperature | -20°C ~ 70°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Latch Holder |
| Detailed Description | 2 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold | Current Rating | 5A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting |
