3M

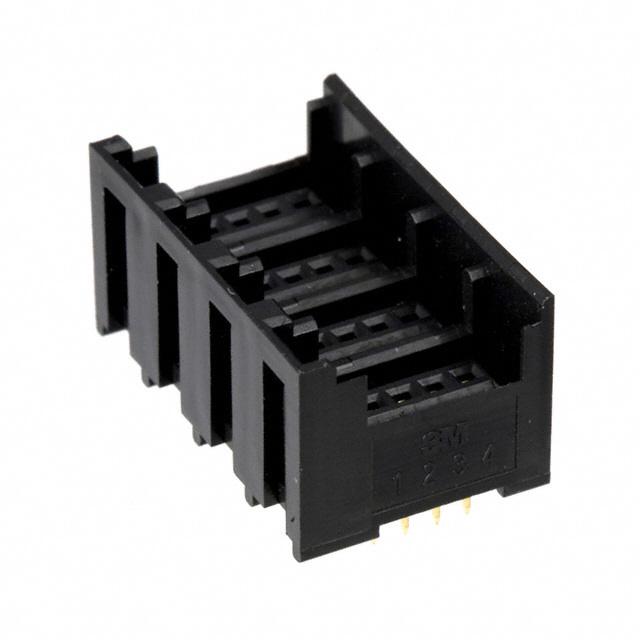

| Part Number | 37216-62M3-004PL | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET PCB 4POS 4-ROW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25646 pcs | Data sheet | 37216-62M3-004PL.pdf |
| Voltage Rating | 32V | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Series | Mini-Clamp I, 372 |
| Row Spacing - Mating | 0.256" (6.50mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 0-45-47452-45022-0 37216-62M3-004PL-ND 3721662M3004PL 3M5718 4547452450220 54745245022 7000007609 JE150338737 |
| Operating Temperature | - | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | 16 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
