3M
| Part Number | 37204-62B3-004PL | Manufacturer | 3M |
|---|---|---|---|

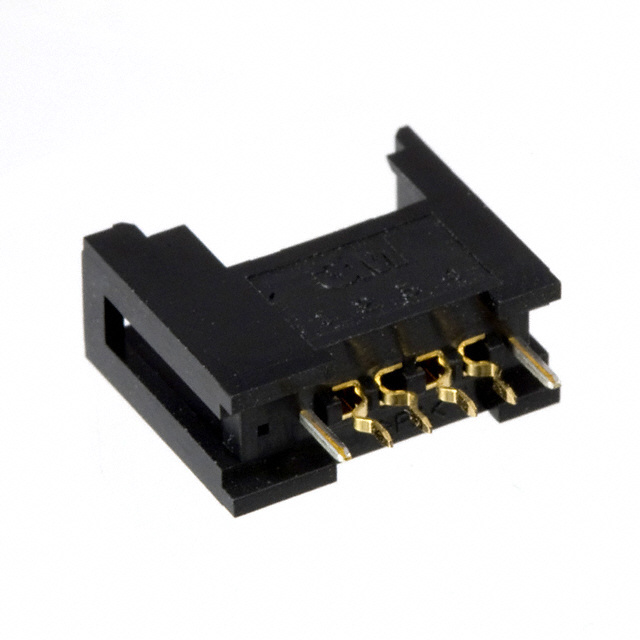

| Description | CONN SOCKET 2MM 4POS VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 47152 pcs | Data sheet | 37204-62B3-004PL.pdf |
| Voltage Rating | 32V | Termination | Kinked Pin, Solder |
| Style | Board to Cable/Wire | Series | Mini-Clamp I, 372 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 3720462B3004PL 3M5703 4547452450299 54745245029 7100001231 JE150338802 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | 4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.102" (2.60mm) |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
