3M

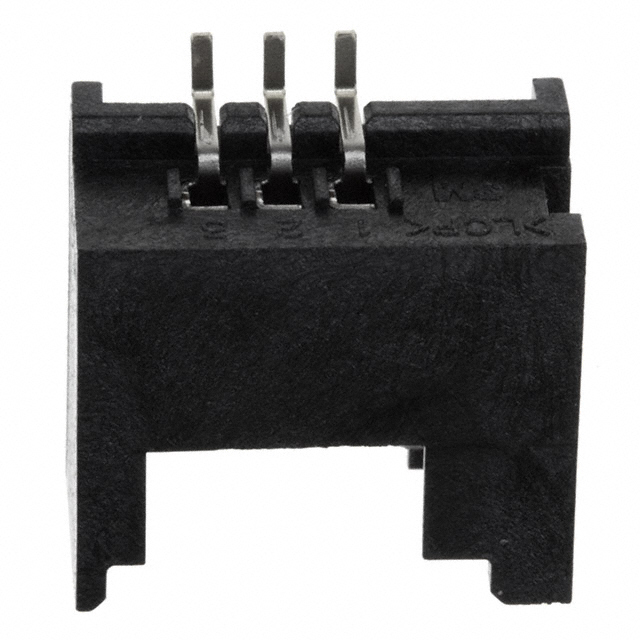

| Part Number | 37203-12E0-003 PL | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN SOCKET 3POS 2MM R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34602 pcs | Data sheet | 37203-12E0-003 PL.pdf |
| Voltage Rating | 32V | Termination | Solder |
| Style | Board to Cable/Wire | Series | Mini-Clamp I, 372 |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 3720312E0003PL 3M99808 54745296448 7010404252 JE-1503-8091-1 JE150380911 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.303" (7.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | 3 Position Receptacle Connector 0.079" (2.00mm) Surface Mount, Right Angle Gold | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
