3M

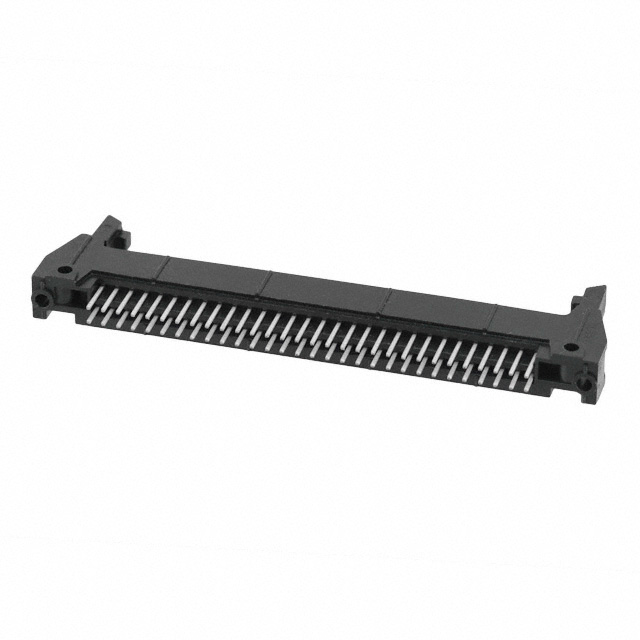

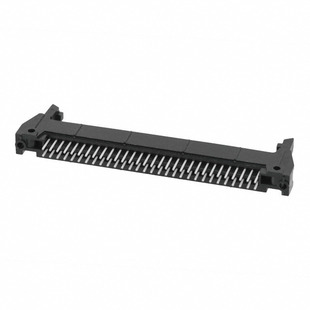

| Part Number | 3372-6302 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 60POS STR LONG LA | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 17530 pcs | Data sheet | 1.3372-6302.pdf2.3372-6302.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | 3000 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.652" (16.56mm) | Other Names | 00076308634599 05113861623 05400732829 07630863459 3372-6602 3372-6602-ND 33726302 33726602 5113861623 51138616236 5400732829 54007328292 80001414178 80610098180 80610469373 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 60 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Insulation Height | 0.680" (17.27mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Mounting Flange | Fastening Type | Latch Lock/Eject Hooks, Long |
| Detailed Description | Connector Header Through Hole 60 position 0.100" (2.54mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.112" (2.84mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
