3M

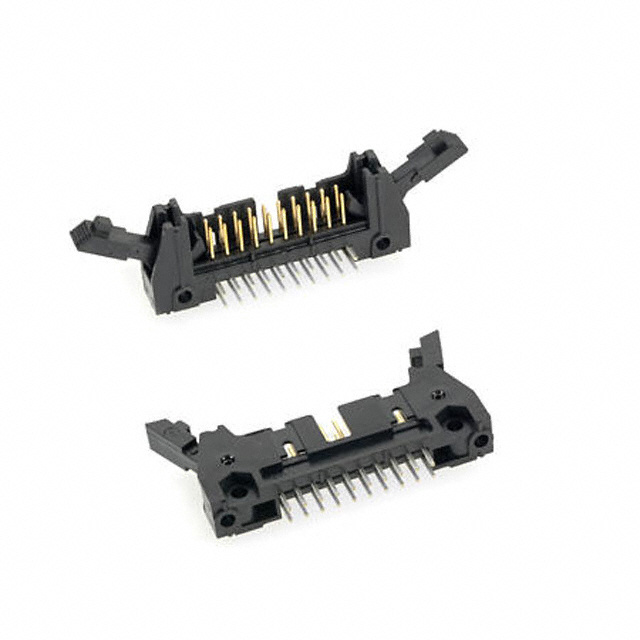

| Part Number | 3314-6203-UG | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 14PS STR SHORT LATCH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 46151 pcs | Data sheet | 1.3314-6203-UG.pdf2.3314-6203-UG.pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Type Attributes | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Stacking Direction | Male Pin | Shrouding | 0.100" (2.54mm) |
| Shield Termination | Square | Series | 3000 |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Bulk |
| Ripple Current - Low Frequency | - | Pitch - Connector | - |
| Overall Contact Length | 0.155" (3.94mm) | Other Names | 00076308708306 05111152002 07630870830 3314-6503UG 3314-6503UG-ND 80001417866 80400001352 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions | 14 | Number of Contacts | 200µin (5.08µm) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 6 Weeks | Manufacturer Part Number | 3314-6203-UG |
| Length - Post (Mating) | - | Insulation Material | Tin-Lead |
| Insulation Height | 0.695" (17.65mm) | Features | Keying Slot, Mounting Flange |
| Expanded Description | 14 Positions Header Connector 0.100" (2.54mm) Through Hole Gold | Description | CONN HEADER 14PS STR SHORT LATCH |
| Current Rating | 1A | Current - Max/Contact | Latch Lock/Eject Hooks, Short |
| Contact Length - Post | 0.240" (6.10mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Polybutylene Terephthalate (PBT), Polyester, Glass Filled | Contact Finish Thickness - Mating | Gold |
| Contact Finish - Post | 15µin (0.38µm) | Contact Finish - Mating | 0.680" (17.27mm) |
| Connector Type | Header | Actual Diameter | Black |
