3M
| Part Number | 290-1294-00-3302J | Manufacturer | 3M |
|---|---|---|---|

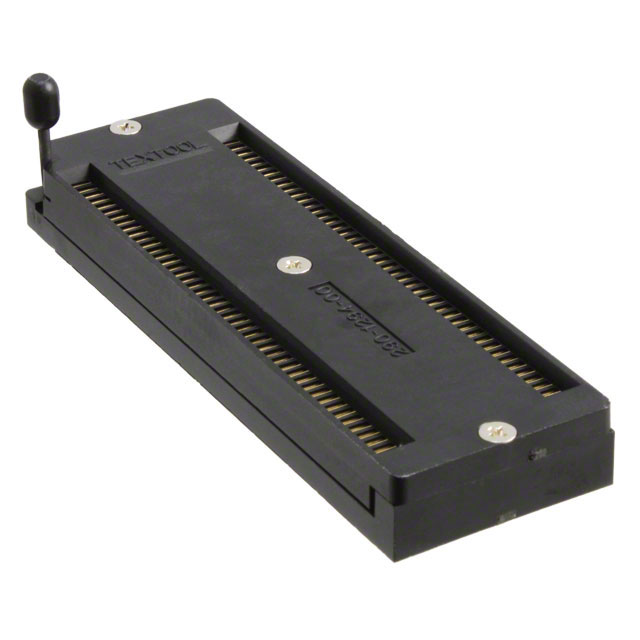

| Description | CONN IC DIP SOCKET ZIF 90POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1948 pcs | Data sheet | 1.290-1294-00-3302J.pdf2.290-1294-00-3302J.pdf |
| Type | DIP, ZIF (ZIP) | Termination Post Length | 0.130" (3.30mm) |
| Termination | Solder | Series | Textool™ |
| Pitch - Post | 0.070" (1.78mm) | Pitch - Mating | 0.070" (1.78mm) |
| Packaging | Bulk | Other Names | 0 54007 53582 9 2901294003302J 3M5012 7010404013 JE150140653 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 90 (2 x 45) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | 15 mOhm | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
