3M
| Part Number | 268-5401-11-1102JH | Manufacturer | 3M |
|---|---|---|---|

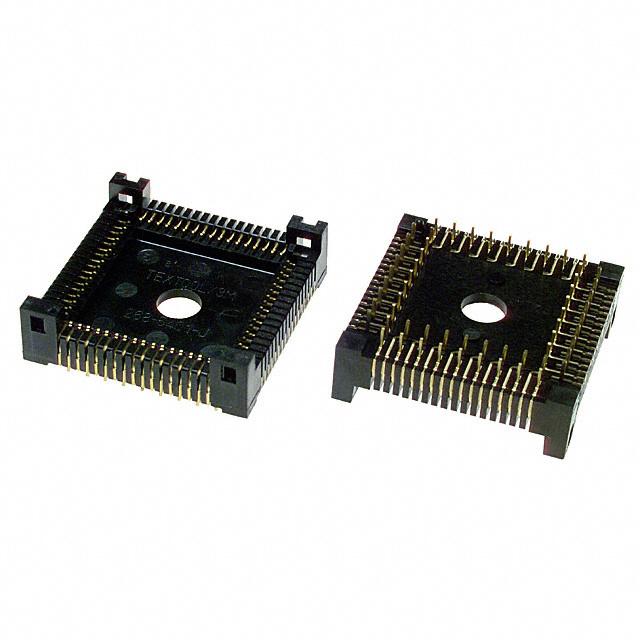

| Description | CONN SOCKET CLCC 68POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3833 pcs | Data sheet | 268-5401-11-1102JH.pdf |
| Type | CLCC | Termination Post Length | 0.100" (2.54mm) |
| Termination | Solder | Series | OEM |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Other Names | 2006805400-011011002 2685401111102JH 3M6809B 5113869925 51138699253 5400767310 54007673101 7000007718 80-6103-5173-8 80610351738 JE-1500-8572-6 JE150901401 |
| Operating Temperature | -55°C ~ 105°C | Number of Positions or Pins (Grid) | 68 (4 x 17) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | - |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
