3M
| Part Number | 264-4493-09-0602J | Manufacturer | 3M |
|---|---|---|---|

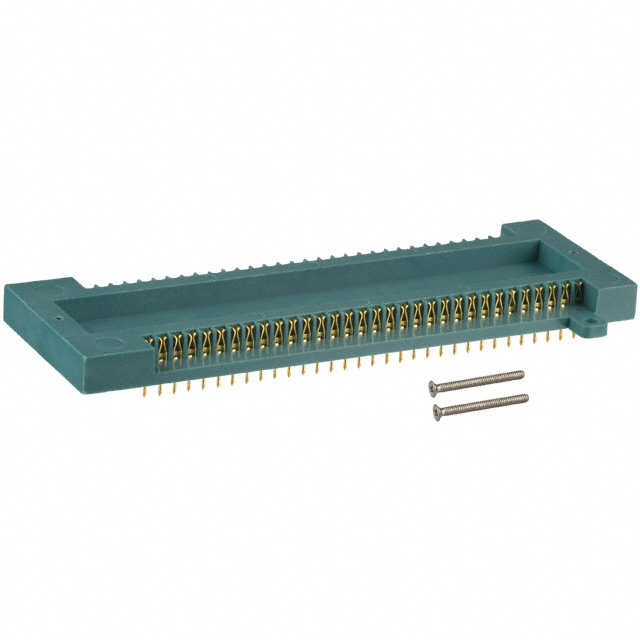

| Description | SOCKET ADAPTER 64DIP TO 64DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2684 pcs | Data sheet | 264-4493-09-0602J.pdf |
| Termination Post Length | 0.130" (3.30mm) | Termination | Solder |
| Series | Textool™ | Pitch - Post | 0.070" (1.78mm) |
| Pitch - Mating | 0.070" (1.78mm) | Other Names | 2006405119-006006002 2644493090602J 3M6401 5113869602 51138696023 5400747241 54007472414 7010404389 80-6102-3272-2 80610232722 JE-1509-0047-8 JE150900478 |
| Operating Temperature | -55°C ~ 125°C | Number of Pins | 64 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | - | Detailed Description | IC Socket Adapter DIP, 0.9" (22.86mm) Row Spacing To DIP, 0.9" (22.86mm) Row Spacing Through Hole |
| Current Rating | 1A | Convert To (Adapter End) | DIP, 0.9" (22.86mm) Row Spacing |
| Convert From (Adapter End) | DIP, 0.9" (22.86mm) Row Spacing | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 300.0µin (7.62µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Board Material | - |
