3M
| Part Number | 240-3639-09-0602J | Manufacturer | 3M |
|---|---|---|---|

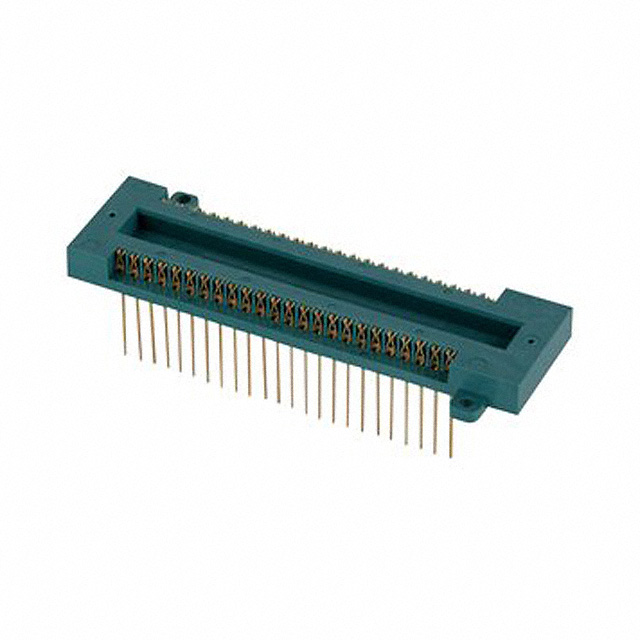

| Description | RECEPTACLE DIP SOCKET 40POS 1.0" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5048 pcs | Data sheet | 240-3639-09-0602J.pdf |
| Termination Post Length | 0.130" (3.30mm) | Termination | Solder |
| Series | Textool™ | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Other Names | 0 51138 69601 6 2403639090602J 3M5037 5113869601 51138696016 JE150900452 |
| Operating Temperature | -55°C ~ 125°C | Number of Pins | 40 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | Closed Frame | Detailed Description | IC Socket Adapter DIP, 1.0" (25.40mm) Row Spacing To DIP, 1.0" (25.40mm) Row Spacing Through Hole |
| Current Rating | 1A | Convert To (Adapter End) | DIP, 1.0" (25.40mm) Row Spacing |
| Convert From (Adapter End) | DIP, 1.0" (25.40mm) Row Spacing | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Board Material | - |
