3M
| Part Number | 240-1280-00-0602J | Manufacturer | 3M |
|---|---|---|---|

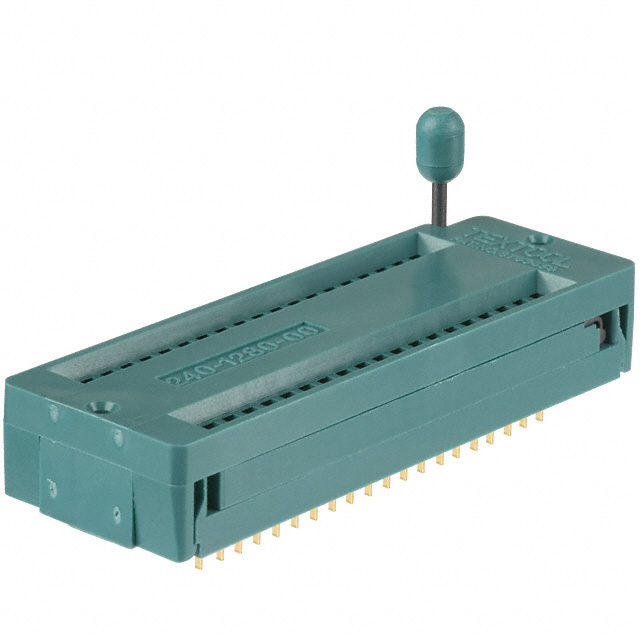

| Description | CONN IC DIP SOCKET ZIF 40POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3613 pcs | Data sheet | 1.240-1280-00-0602J.pdf2.240-1280-00-0602J.pdf |
| Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing | Termination Post Length | 0.110" (2.78mm) |
| Termination | Press-Fit | Series | Textool™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | 2004003346-000006002 240-3346-00-0602 2401280000602J 3M4002 5113876503 51138765033 5400733212 54007332121 7000036222 80-6101-0433-5 80610104335 JE-1500-8415-8 JE150084158 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 40 (2 x 20) |
| Mounting Type | Connector | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | 15 mOhm | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
