2304-5121-TB

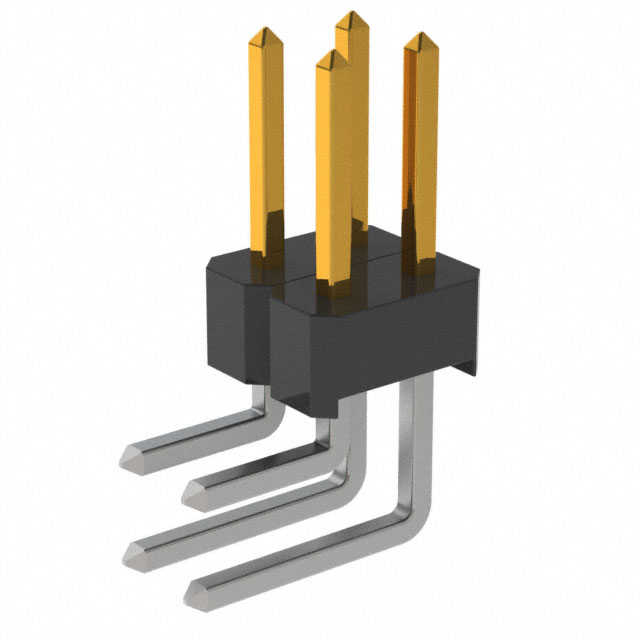

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2304-5121-TB
Manufacturer/Brand:	3M
Product description	PIN STRIP HEADER 4 PIN RIGHT ANG
Datasheets:	2304-5121-TB.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	156818 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 156818 pcs

Reference Price (In US Dollars)

10000 pcs: $0.211

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.211

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2304-5121-TB

Part Number	2304-5121-TB	Manufacturer	3M
Description	PIN STRIP HEADER 4 PIN RIGHT ANG	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	156818 pcs	Data sheet	2304-5121-TB.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	2300	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	00051135276020 05113527602 SE008013218
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Thermoplastic, Glass Filled	Insulation Height	0.242" (6.14mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	0.230" (5.84mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
