3M
| Part Number | 222-3343-00-0602J | Manufacturer | 3M |
|---|---|---|---|

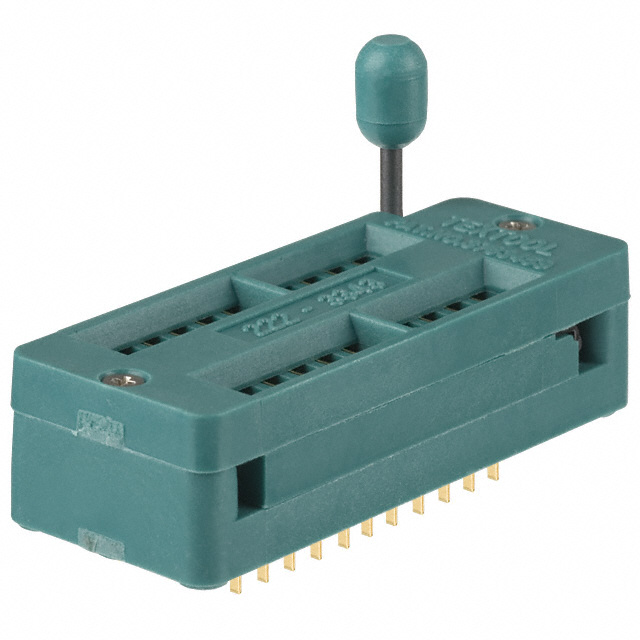

| Description | CONN IC DIP SOCKET ZIF 22POS GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4560 pcs | Data sheet | 1.222-3343-00-0602J.pdf2.222-3343-00-0602J.pdf |
| Type | DIP, ZIF (ZIP), 0.4" (10.16mm) Row Spacing | Termination Post Length | 0.110" (2.78mm) |
| Termination | Press-Fit | Series | Textool™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Other Names | 2002203343-000006002 222-3342-00-0602 2223343000602J 3M2202 5113869543 51138695439 5400733209 54007332091 7000007707 80-6101-0430-1 80610104301 JE-1509-0023-9 JE150900239 |
| Operating Temperature | -55°C ~ 125°C | Number of Positions or Pins (Grid) | 22 (2 x 11) |
| Mounting Type | Connector | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polysulfone (PSU), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | - | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
