3M

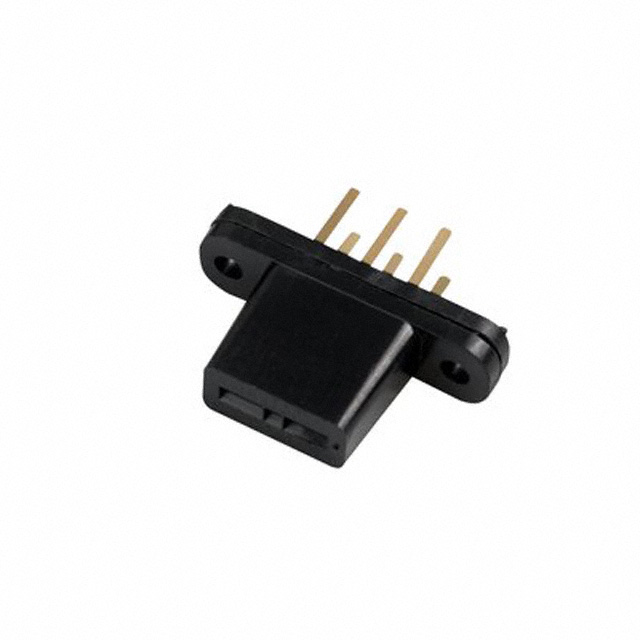

| Part Number | 203-2737-55-1102 | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN TRANSIST TO-3/TO-66 3POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 2736 pcs | Data sheet | 1.203-2737-55-1102.pdf2.203-2737-55-1102.pdf |
| Type | Transistor, TO-3 and TO-66 | Termination Post Length | 0.370" (9.40mm) |
| Termination | Solder | Series | Textool™ |
| Pitch - Post | 0.234" (5.94mm) | Pitch - Mating | - |
| Packaging | Bulk | Other Names | 0 51138 69532 3 2.03274E+12 203-2737-55-1102-ND 2032737551102 3M10849 5113869532 51138695323 7000007717 JE150900940 |
| Operating Temperature | -55°C ~ 150°C | Number of Positions or Pins (Grid) | 3 (Rectangular) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | 25 mOhm | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold |
