Part Number | 200-6319-9UN-1900 | Manufacturer | 3M |
---|---|---|---|

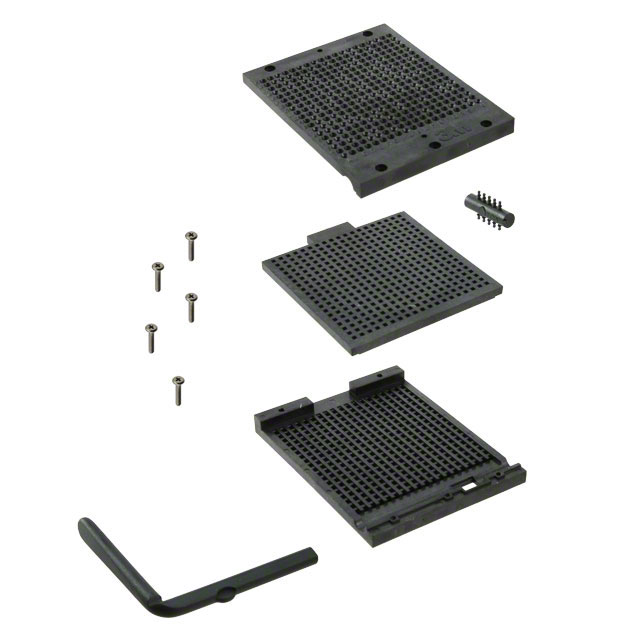

Description | CONN SOCKET PGA ZIF 361POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 1288 pcs | Data sheet | 1.200-6319-9UN-1900.pdf2.200-6319-9UN-1900.pdf3.200-6319-9UN-1900.pdf |
Type | PGA, ZIF (ZIP) | Termination Post Length | 0.130" (3.30mm) |
Termination | Solder | Series | Textool™ |
Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
Packaging | Bulk | Other Names | 0 51138 69648 1 20063199UN1900 3M5071 5113869648 51138696481 7000034890 JE150901336 |
Operating Temperature | -55°C ~ 150°C | Number of Positions or Pins (Grid) | 361 (19 x 19) |
Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyethersulfone (PES) |
Features | - | Current Rating | 1A |
Contact Resistance | - | Contact Material - Post | Beryllium Copper |
Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 30.0µin (0.76µm) |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
Contact Finish - Mating | Gold |
