3M

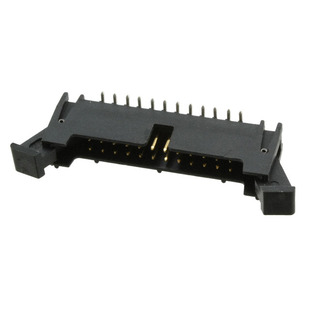

| Part Number | 155224-2200-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 2MM 24POS VERT SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17450 pcs | Data sheet | 1.155224-2200-RB.pdf2.155224-2200-RB.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | 1552 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 0 00 51111 17149 3 1552242200RB 5111117149 51111171493 7010319780 80-0011-2600-4 80001126004 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 24 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.425" (10.80mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Lock/Eject Hooks |
| Detailed Description | Connector Header Surface Mount 24 position 0.079" (2.00mm) | Current Rating | 1.25A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.150" (3.81mm) | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
