3M

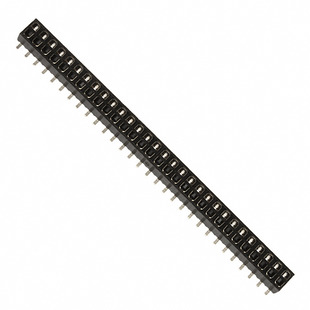

| Part Number | 153260-2020-RB | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 2MM SKT 60POS THRU-BRD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23708 pcs | Data sheet | 153260-2020-RB.pdf |
| Voltage Rating | 500VDC | Termination | Solder |
| Style | Board to Board or Cable | Series | 1532 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Other Names | 05111166118 1532602020RB 3M5433 5111166118 51111661185 7010501729 80000903924 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 60 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.129" (3.28mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Push-Pull |
| Detailed Description | 60 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
