3M

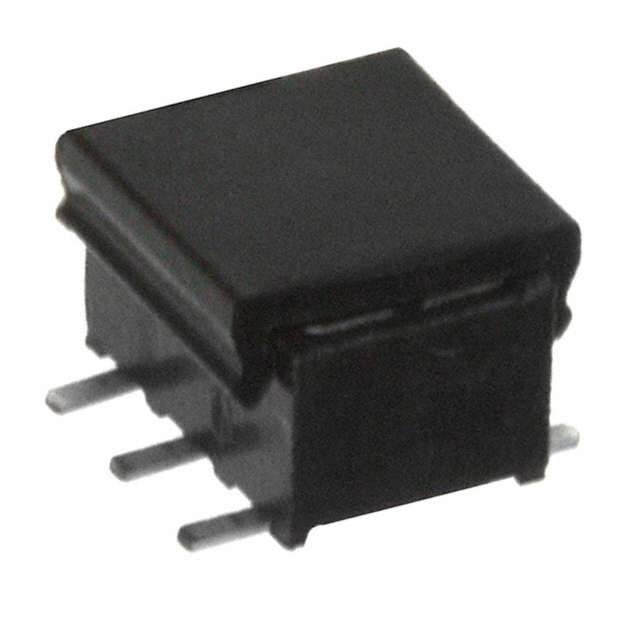

| Part Number | 153206-2000-RB-WA | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN 2MM SKT 6POS THRU-BRD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6881 pcs | Data sheet | 153206-2000-RB-WA.pdf |
| Voltage Rating | 500VDC | Termination | Solder |
| Style | Board to Board or Cable | Series | 1532 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Other Names | 1532062000RBWA 3M5411CT |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Glass Filled | Insulation Height | 0.129" (3.28mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 6 Position Receptacle, Bottom or Top Entry Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Bottom or Top Entry | Applications | - |
