3M
| Part Number | 150226-6002-RB | Manufacturer | 3M |
|---|---|---|---|

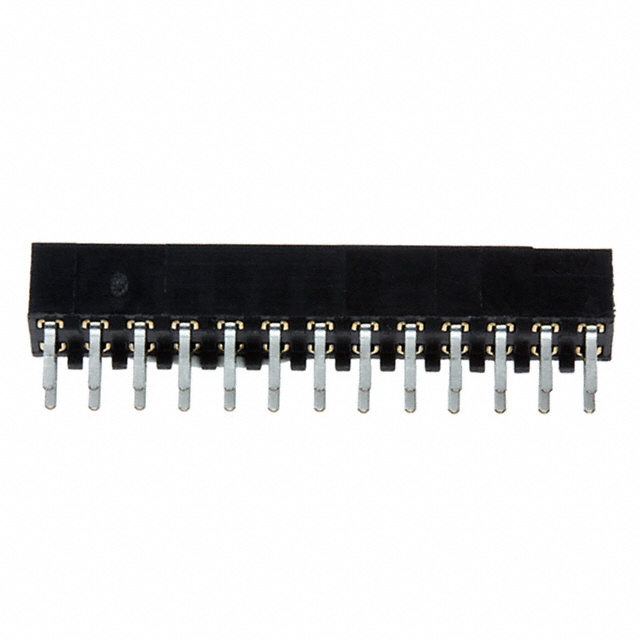

| Description | CONN 26POS 2MM SOCKET VERT PC MT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33100 pcs | Data sheet | 1.150226-6002-RB.pdf2.150226-6002-RB.pdf |
| Voltage Rating | 500VDC | Termination | Solder |
| Style | Board to Board or Cable | Series | 1502 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Other Names | 00076308788629 05111165670 1502266002RB 3M5321 5111165670 51111656709 7010385438 70200302001 80000900664 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 26 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.177" (4.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 26 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | 1A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
