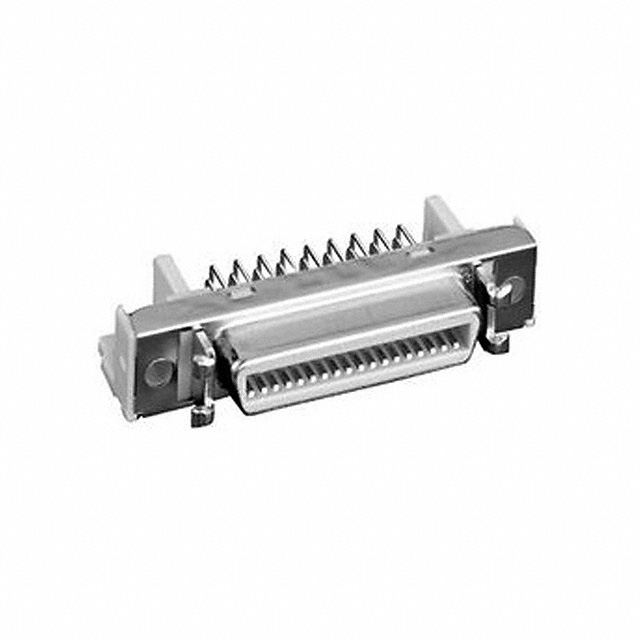

10236-55G3PL

Image may be representation. See specifications for product details.

Product Overview

Part Number:	10236-55G3PL
Manufacturer/Brand:	3M
Product description	CONN MDR RCPT 20POS R/A M2.5 AU
Datasheets:	1.10236-55G3PL.pdf 2.10236-55G3PL.pdf 3.10236-55G3PL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16172 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16172 pcs

Reference Price (In US Dollars)

1 pcs: $2.016

10 pcs: $1.935

25 pcs: $1.774

50 pcs: $1.693

100 pcs: $1.613

250 pcs: $1.411

500 pcs: $1.371

1000 pcs: $1.169

2500 pcs: $1.088

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.016

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 10236-55G3PL

Part Number	10236-55G3PL	Manufacturer	3M
Description	CONN MDR RCPT 20POS R/A M2.5 AU	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16172 pcs	Data sheet	1.10236-55G3PL.pdf 2.10236-55G3PL.pdf 3.10236-55G3PL.pdf
Type	-	Termination	Solder
Series	102, Mini D Ribbon (MDR)	Other Names	0-45-47452-26232-8 10236-55G3PL-ND 1023655G3PL 3M156906 4547452262328 54745226232 7000007565 JE150318184
Number of Rows	2	Number of Positions	36
Mounting Type	Panel Mount, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Flange Feature	Insert, Threaded (M2.5); Latchblocks	Features	Board Lock, Shielded
Detailed Description	36 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder	Contact Finish Thickness	8.00µin (0.203µm)
Contact Finish	Gold	Connector Type	Receptacle
Connector Style	Outer Shroud Contacts
