Wurth Electronics

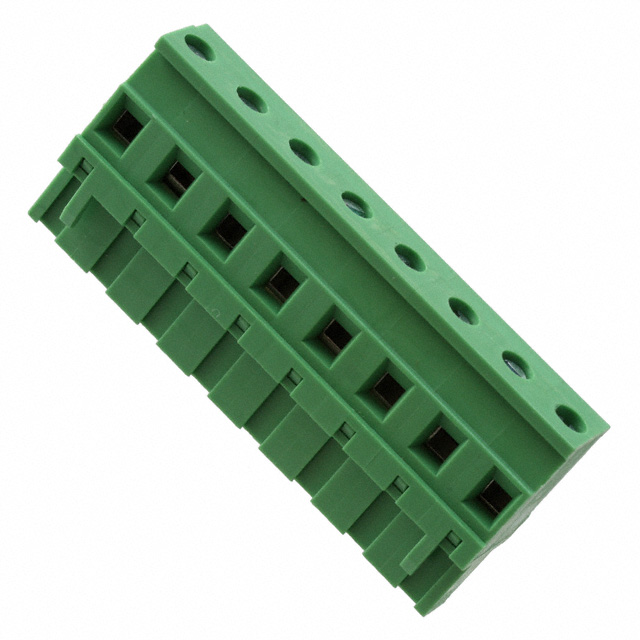

| Part Number | 691352410008 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23514 pcs | Data sheet | 691352410008.pdf |
| Wire Strip Length | 6-7mm | Wire Gauge or Range - mm² | 0.2-3mm² |
| Wire Gauge or Range - AWG | 12-24 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.49 Nm (4.3 Lb-In) |
| Termination Style | Screw - Leaf Spring, Wire Guard | Series | WR-TBL Series 3524 |
| Screw Size | M3 | Positions Per Level | 8 |
| Plug Wire Entry | 90° | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 732-2822 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.024" (26.01mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Retention Latches (Wire Side) | Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 90° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | - |
| Contact Material | - | Color | Green |
