Wurth Electronics

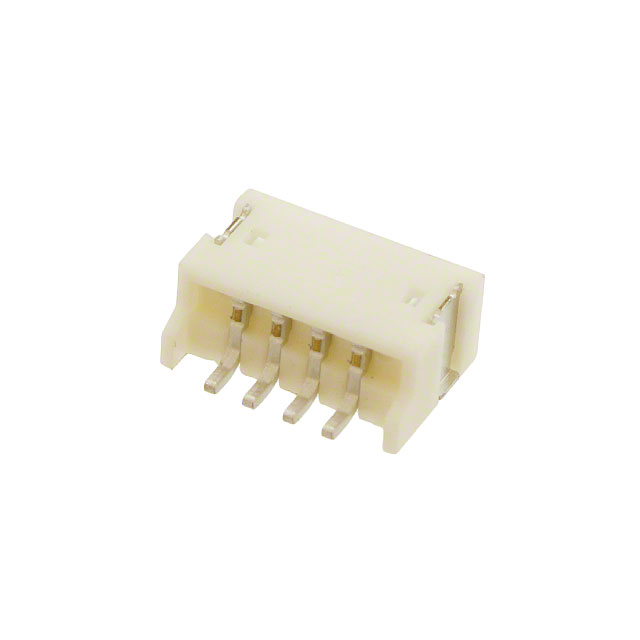

| Part Number | 648104131822 | Manufacturer | Wurth Electronics |
|---|---|---|---|
| Description | HEADER 4POS MALE R/A 1.5MM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132967 pcs | Data sheet | 648104131822.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | WR-WTB | Row Spacing - Mating | - |
| Pitch - Mating | 0.059" (1.50mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 732-2721-2 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.146" (3.70mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount, Right Angle 4 position 0.059" (1.50mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
