Weidmuller

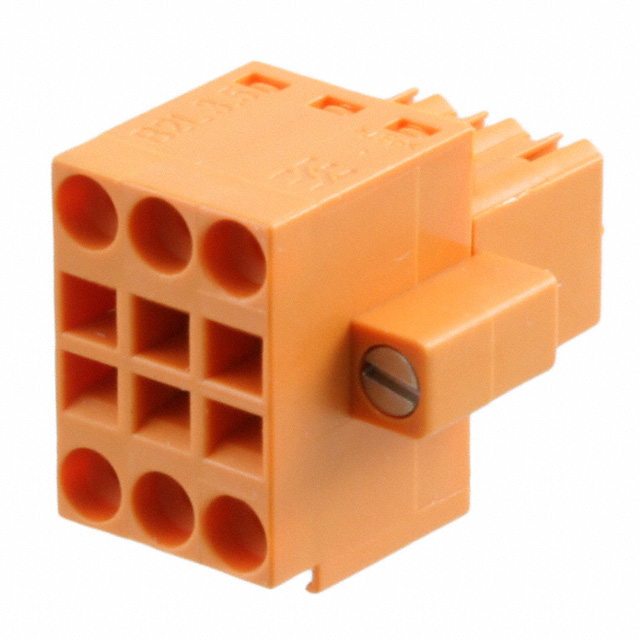

| Part Number | 1748010000 | Manufacturer | Weidmuller |
|---|---|---|---|
| Description | TERM BLOCK PLUG 6POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 18863 pcs | Data sheet | 1748010000.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-1mm² |
| Wire Gauge or Range - AWG | 16-28 AWG | Voltage - UL | 150V |
| Voltage - IEC | 250V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Spring Cage, Tension Clamp |
| Series | Omnimate B2L | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | 180° |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1748010000-ND 281-3133 B2L 3.5/6F SN OR |
Operating Temperature | -50°C ~ 100°C |
| Number of Positions | 6 | Number of Levels | 2 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.618" (15.70mm) |
| Ingress Protection | IP20 | Housing Material | Polybutylene Terephthalate (PBT) |
| Header Orientation | - | Features | Mating Flange |
| Detailed Description | 6 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | 10.3A | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Copper Alloy |
| Color | Orange |
