TB67S149FG,EL

Toshiba Semiconductor and Storage

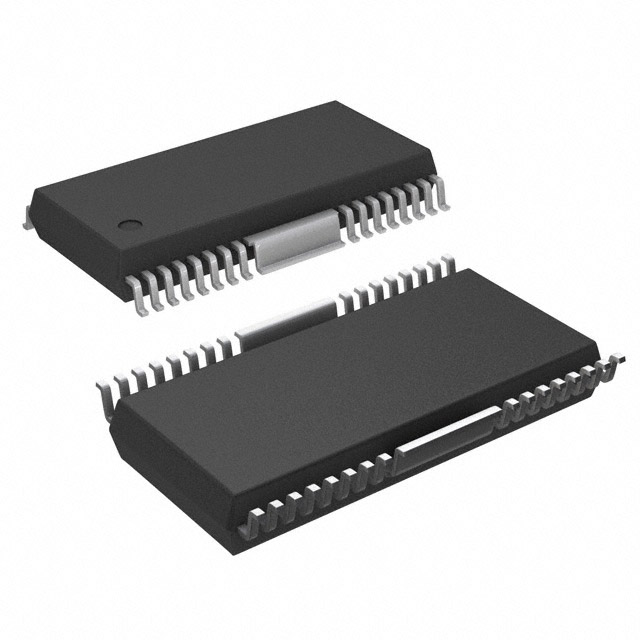

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TB67S149FG,EL
Manufacturer/Brand:	Toshiba Semiconductor and Storage
Product description	2 PHASE UNIPOLAR STEPPING MOTOR
Datasheets:	TB67S149FG,EL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	51428 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 51428 pcs

Reference Price (In US Dollars)

1000 pcs: $0.683

2000 pcs: $0.649

5000 pcs: $0.624

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.683

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TB67S149FG,EL

Part Number	TB67S149FG,EL	Manufacturer	Toshiba Semiconductor and Storage
Description	2 PHASE UNIPOLAR STEPPING MOTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51428 pcs	Data sheet	TB67S149FG,EL.pdf
Voltage - Supply	4.75 V ~ 5.25 V	Voltage - Load	10 V ~ 40 V
Technology	Power MOSFET	Supplier Device Package	28-HSSOP
Step Resolution	1 ~ 1/32	Series	-
Packaging	Tape & Reel (TR)	Package / Case	28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
Output Configuration	Half Bridge (2)	Other Names	TB67S149FG(O,EL) TB67S149FG(OEL) TB67S149FGEL TB67S149FGELTR
Operating Temperature	-20°C ~ 85°C (TA)	Mounting Type	Surface Mount
Motor Type - Stepper	Unipolar	Motor Type - AC, DC	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Unipolar Motor Driver Power MOSFET Parallel 28-HSSOP	Current - Output	3A
Applications	General Purpose
