TL431CZ-AP

STMicroelectronics

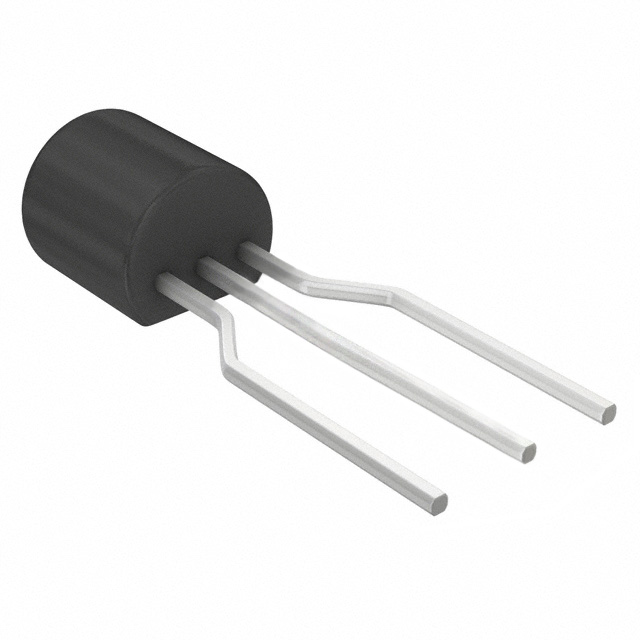

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TL431CZ-AP
Manufacturer/Brand:	STMicroelectronics
Product description	IC VREF SHUNT ADJ TO92-3
Datasheets:	TL431CZ-AP.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	919455 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 919455 pcs

Reference Price (In US Dollars)

2000 pcs: $0.034

6000 pcs: $0.032

10000 pcs: $0.029

50000 pcs: $0.024

100000 pcs: $0.024

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.034

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TL431CZ-AP

Part Number	TL431CZ-AP	Manufacturer	STMicroelectronics
Description	IC VREF SHUNT ADJ TO92-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	919455 pcs	Data sheet	TL431CZ-AP.pdf
Voltage - Output (Min/Fixed)	2.495V	Voltage - Output (Max)	36V
Voltage - Input	-	Tolerance	±2.21%
Temperature Coefficient	-	Supplier Device Package	TO-92-3
Series	-	Reference Type	Shunt
Packaging	Tape & Box (TB)	Package / Case	TO-226-2, TO-92-2 (TO-226AC) (Formed Leads)
Output Type	Adjustable	Other Names	497-15786-3 TL431CZ-AP-ND
Operating Temperature	0°C ~ 70°C (TA)	Noise - 10Hz to 10kHz	-
Noise - 0.1Hz to 10Hz	-	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	38 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Shunt Voltage Reference IC 36V ±2.21% 100mA TO-92-3
Current - Supply	-	Current - Output	100mA
Current - Cathode	1mA	Base Part Number	TL431
