PE-68280

Pulse Electronics Corporation

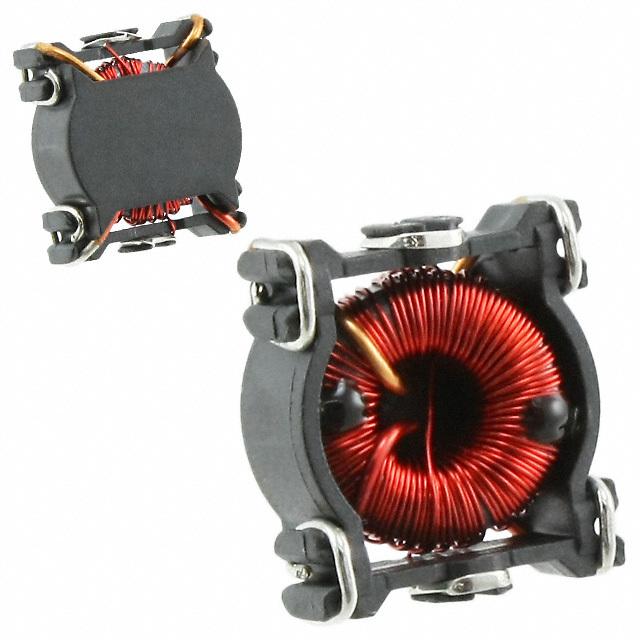

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PE-68280
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 1:1:100 15A SMD
Datasheets:	PE-68280.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4213 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4213 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PE-68280

Part Number	PE-68280	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:1:100 15A SMD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4213 pcs	Data sheet	PE-68280.pdf
Weight	-	Type	Invasive
Turns Ratio - Primary:Secondary	1:1:100	Termination Style	-
Size / Dimension	0.495" L x 0.490" W (12.57mm x 12.45mm)	Series	-
Ratings	-	Packaging	Tray
Other Names	PE68280	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Inductance	14.8mH	Height - Seated (Max)	0.280" (7.11mm)
Frequency Range	50kHz ~ 500kHz	Energy Time (E.T.)	-
Detailed Description	15A 1:1:100 Current Sense Transformer 50kHz ~ 500kHz 1.15 mOhm Primary, 930 mOhm Secondary 14.8mH Surface Mount	DC Resistance (DCR)	1.15 mOhm Primary, 930 mOhm Secondary
Current Ratio	-	Current Rating	15A
