H5401NL

Pulse Electronics Corporation

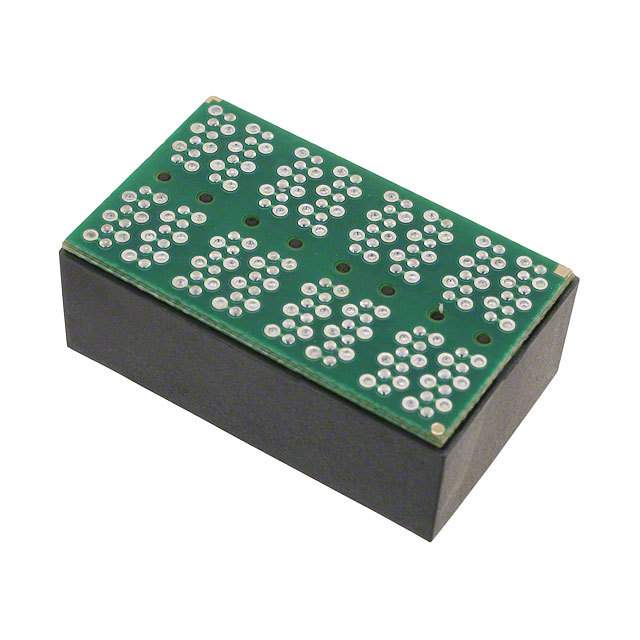

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H5401NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	MODULE XFORMR QUAD GIGABIT SMD
Datasheets:	H5401NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5771 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5771 pcs

Reference Price (In US Dollars)

1 pcs: $6.676

10 pcs: $5.89

25 pcs: $5.694

60 pcs: $5.105

120 pcs: $4.908

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.676

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H5401NL

Part Number	H5401NL	Manufacturer	Pulse Electronics Corporation
Description	MODULE XFORMR QUAD GIGABIT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5771 pcs	Data sheet	H5401NL.pdf
Weight	0.35 oz (9.97g)	Turns Ratio - Primary:Secondary	1CT:1CT
Transformer Type	-	Size / Dimension	1.120" L x 0.680" W (28.45mm x 17.27mm)
Series	-	Packaging	Tube
Other Names	553-1458	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	-	Height - Seated (Max)	0.438" (11.12mm)
Energy Time (E.T.)	-
