H1197FNL

Pulse Electronics Corporation

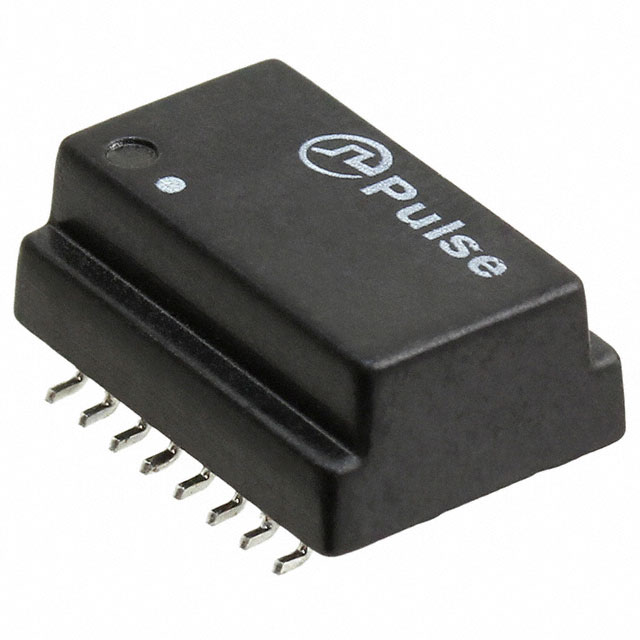

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H1197FNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheets:	H1197FNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18083 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18083 pcs

Reference Price (In US Dollars)

1 pcs: $1.77

10 pcs: $1.435

40 pcs: $1.16

80 pcs: $1.087

120 pcs: $1.038

280 pcs: $1.007

520 pcs: $0.977

1000 pcs: $0.946

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.77

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H1197FNL

Part Number	H1197FNL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18083 pcs	Data sheet	H1197FNL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver
Transformer Type	LAN 10/100 Base-T	Size / Dimension	0.500" L x 0.358" W (12.70mm x 9.09mm)
Series	-	Packaging	Tube
Other Names	553-2197 553-2197-5 553-2197-ND	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	1.2mH	Height - Seated (Max)	0.236" (5.99mm)
Energy Time (E.T.)	-
