TOP254YN

Power Integrations

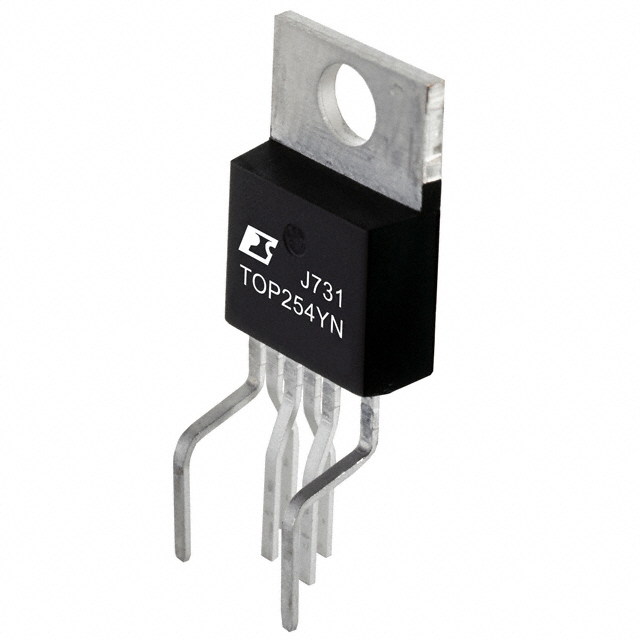

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TOP254YN
Manufacturer/Brand:	Power Integrations
Product description	IC OFFLINE SWIT PROG OVP TO220
Datasheets:	TOP254YN.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	30140 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 30140 pcs

Reference Price (In US Dollars)

1 pcs: $1.04

10 pcs: $0.931

50 pcs: $0.837

100 pcs: $0.763

250 pcs: $0.688

500 pcs: $0.618

1000 pcs: $0.521

2500 pcs: $0.495

5000 pcs: $0.476

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.04

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TOP254YN

Part Number	TOP254YN	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT PROG OVP TO220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	30140 pcs	Data sheet	TOP254YN.pdf
Voltage - Supply (Vcc/Vdd)	-	Voltage - Breakdown	700V
Topology	Flyback	Supplier Device Package	TO-220-7C
Series	TOPSwitch®-HX	Power (Watts)	62W
Packaging	Tube	Package / Case	TO-220-7 (Formed Leads), 6 Leads
Output Isolation	Isolated	Other Names	596-1176-5
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	66kHz, 132kHz	Fault Protection	Current Limiting, Over Temperature, Over Voltage
Duty Cycle	78%	Detailed Description	Converter Offline Flyback Topology 66kHz, 132kHz TO-220-7C
Control Features	-
